RFID IND Modbus

494.00 zł

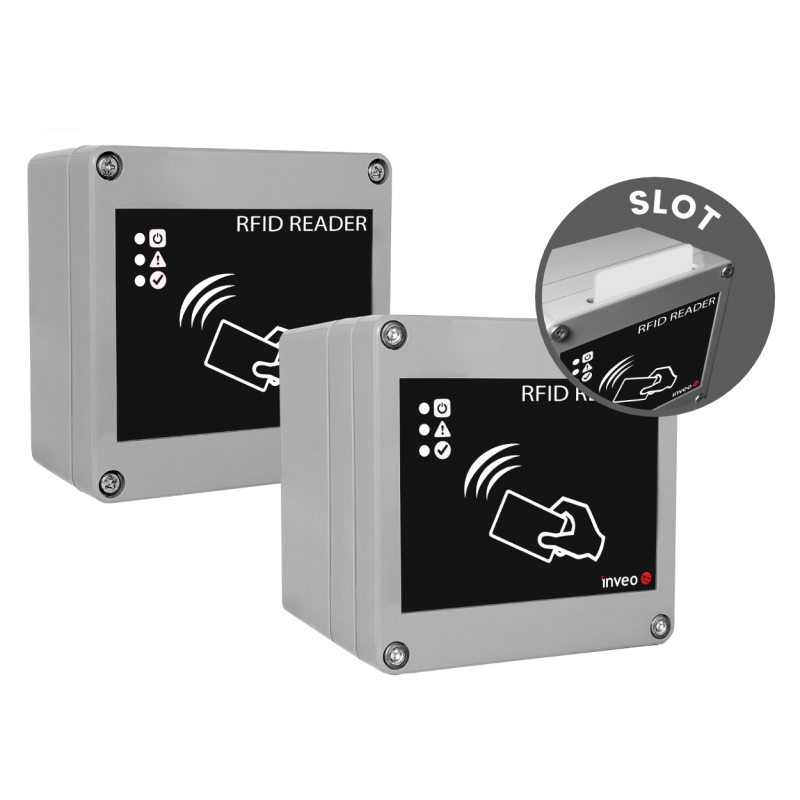

Industrial tag reader has IP65 housing.
The module has an RS485 port designed for communication with the master device. The reader sends the code read from RFID card. Additionally, using the modbus RTU protocol, the user can control two relay outputs and monitor the status of two digital inputs.
The USB enables to configure the device.

Casing version
Supported RFID standard
Quantity
Available

RFID IND Modbus - go to the product website

Technical data

Supported transponders

  • Unique EM4100, EM4102, 125kHz
  • Mifare Classic® (ISO/IEC 14443-A), Mifare Plus® (UID), Mifare DESFire® (UID), 13,56MHz
  • HID 125kHz
  • HITAG (HITAG 2), 125kHz

Communication

  • RS485
    • Modbus RTU (BaudRate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200)
  • USB B - configuration

Power supply

  • DC: 10 V- 24V (screw connection)
  • Current supply: 15mA (12V)

Inputs & outputs

  • Number of the inputs: 2
    • Type of the inputs: NO
  • Number of the outputs: 2
    • Type of the outputs : relay NO
    • Working modes: Bistable, Astabile, Time
    • Maximum load: 1A @ 30VDC / 0.5A @ 125VAC

Aditional

  • Lock function
  • Buzzer
  • Possibility to personalize the front elevation

User manual RFID IND Modbus Uni

User manual RFID IND Modbus Mif/HT2/H125

Data sheet

Number of relay outputs
2
Number of digital inputs
2
Power
Screw connector 12-24VDC
USB
Communication
RS-485
USB
Communication protocols
Modbus RTU
Standard of supported transponders
HID 125kHz
HITAG
Mifare®
Unique EM4100 EM4102
